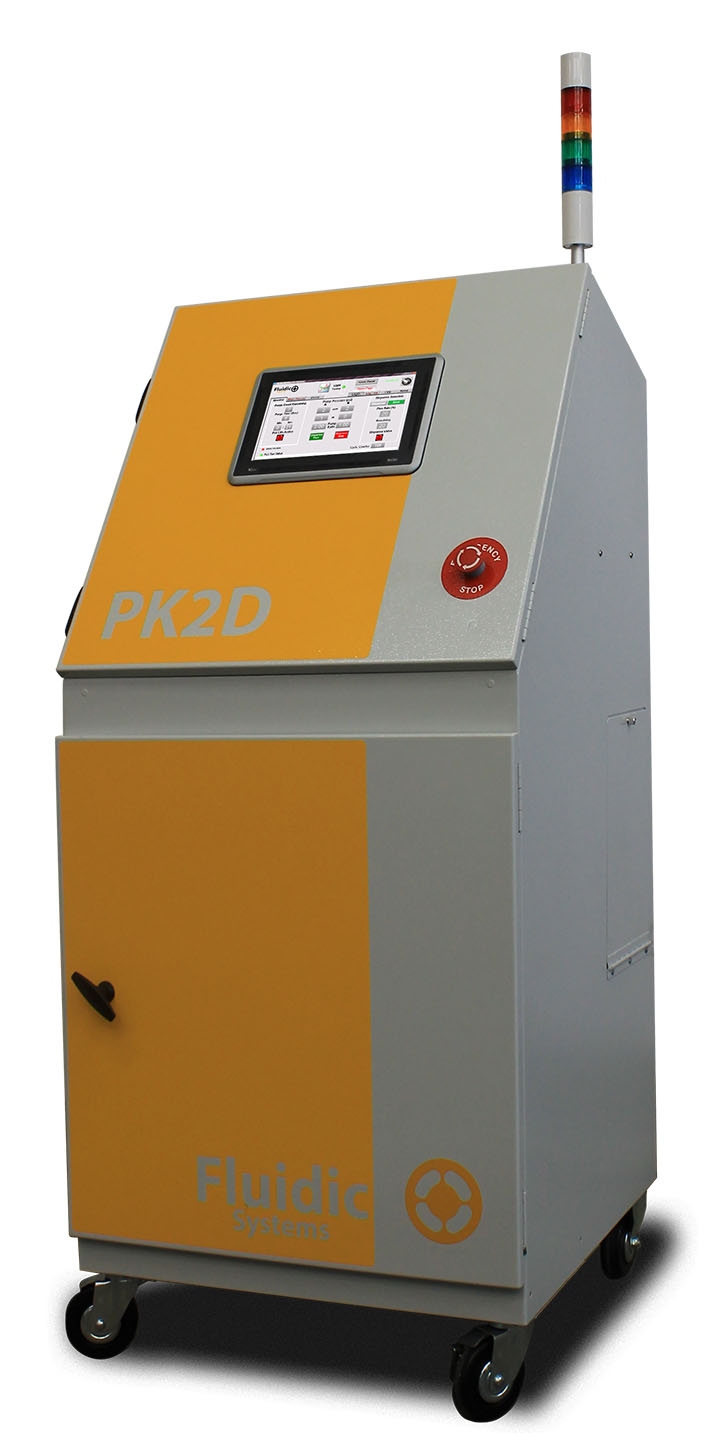

PK2D

2 Component Dispenser

Variable RatioPK2D

Recommended for manual and robotic applications.

Ideal for most 2 component (2 K - 2 part)  meter, mix and dispense applications, including hard to handle abrasive, heavy filled, thixotropic and/or odd ratio materials.

Features and Benefits

  • Linear Displacement Pump (LDP) - Double acting positive displacement rod pumps (Patented)
    • Continuous metered flow (virtually pulse-free) = Shorter Cycle Time
    • Two Component Variable Mix Ratio – 1:1 to 100:1 (+/-1%) = Long Term Utility
    • Dynamic flow rate control 1cc/min. to >gal/min. = Precision Flow Control
    • Viscosity range 1cps to heavy non-flow abrasive compounds = Universal Pump Utility
    • Pressure range 1psi to >3,000psi = Universal Pump Utility
    • No Pistons, Check Valves, Flow Meters = No Slip Factor, No Calibration, Reliability
    • Low shear = Density Integrity of Syntactic Compounds
  • Cross-Over Valve (XV4) – Automated 4-way directional flow control valve (Patented)
    • Replaces check valves for load/dispense functions during LPD reciprocations = Reliability
    • Allows pressure balancing inlet/outlet pressures = Continuous Pulse-Free Metered Flow
  • PLC Servo Motor Pump Drives Control
    • Enables Precision Mix Ratio, Flow Control and Factory Automated Control Functions
  • HMI 10" Color Touch Screen
    • No Mechanical Control Adjustments, Statistical Process Reporting (SPR), Control Integrations, Diagnostic Troubleshooting, PM
    • Monitoring, Remote Control Access

Standard Features

  • Linear Displacement Pumps (LDP)
  • Cross-Over Valves (XV4)
  • PLC Controlled Servo Drives
  • Touch Screen Control Interface (6” Mono Chrome)
  • Dispense Valve Gun
  • Cabinet Casters
  • Dispense Modes: Manual / programmable

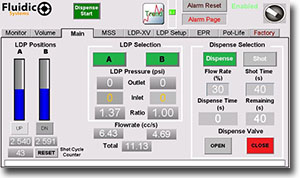

HMI v5

Optional Features

  • Customized HMI Control Screens. Statistical Process Reporting (SPR),Remote Access, Control Integrations, Diagnostic Troubleshooting, PM
  • Monitoring
  • Material Supply Sensors (MSS) – Inlet Material Sensors
  • Liquid Level Sensors - Pressure Pots, Pails, Drums, Totes
  • Auto Pressure Balancing – Inlet Supply / Outlet Dispense Pressures
  • Static Mounted Dispense Valve - Foot Switch or Robotic Activation
  • Robotic Integration – Start/Stop, Flow Control, Purge/Flush Control
  • Type X Air Purge – Class I, Div1, Group D
  • Duplex LDP Metering
  • Material Supply – Pressure Pots / Transfer Pumps
  • Signal Tower – LED Light/Audible Alarm
  • Mobile Self Contained Platforms
  • Overhead Jib Crane
  • TFE SS Braided Hose Assemblies
  • Thermostatic Controlled Heating Solutions

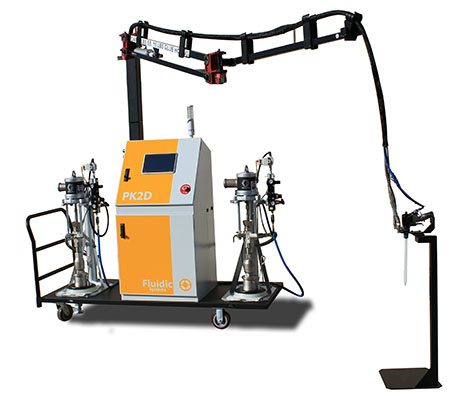

PK2D articulated boom

Technical Specifications

Mix ratio range A:B ...................................................................1:1 to 100:1*
Mix ratio tolerance range ...................................................................... ±1%*
Minimum shot size.................................................................0.5 g/0.018 oz)*
Minimum flow rate ....................................................5 cc/min (0.17 fl.oz/min)*
Maximum flow rate ...............................................10,000 cc/min (2.7 gal/min)*
Maximum fluid working pressure ................................................... >3,000 psi*
Air supply pressure range.........................5-8.5 kg/cm2(80-120 psi) @ 20 CFM
Operating temperature range ....................................... 4 to 60 C (40 to 140 F)
Electrical requirements: ....................................120 VAC (60 Hz) 1Φ, 20 amps
.......................................................................220 VAC (60 Hz) 1Φ, 10 amps
Wetted materials ................................................303, 316 SS, TFE UHMWPE
Viscosity range of fluids .................................1 cps to Non-flow abrasive comp.
Fluid Handled ............................................................One or two components
.........................................(epoxies, urethanes, silicones, acrylics, polyesters)
*Application dependent

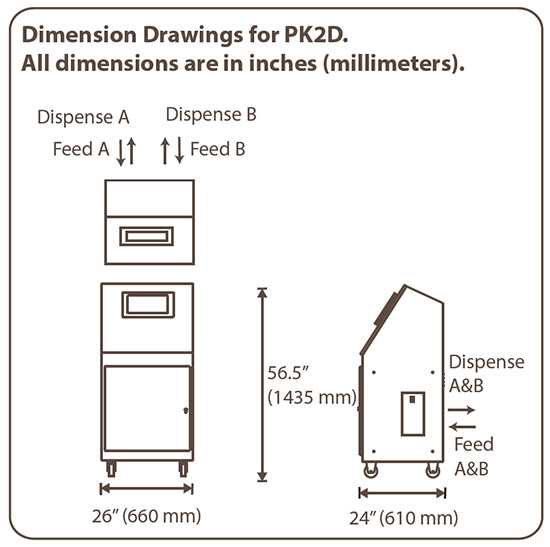

PK2D Dimensions
