HOME/APPLICATIONS/Insert Potting
AEROSPACE INTERIOR

Insert Potting.

Precision metering, mixing and dispensing of two-component potting compounds into inserts and fastener locations in aerospace honeycomb structures.

MATERIALS3M EC-2815 · Huntsman Epibond 420 A/B · Huntsman Epocast 1648 / 1649
ALSO RUNSPlus other aerospace epoxy potting compounds.
Request a quote
Static mixer nozzle filling a metal insert set into a panel, with further inserts alongside

Requirements.

  • Precise and repeatable shot volume.
  • Accurate mix ratio.
  • Fast dispense cycles for high production rates.
  • Handle high-viscosity and thixotropic materials.
  • Handle significant viscosity differences between A and B components.
  • Consistent filling of relatively small insert cavities.
  • Minimize excess material and cleanup.
  • Manual, semi-automatic or fully automated dispensing capability.

Fluidic solution.

  • PK1D for suitable fixed-ratio materials.
  • PK2D for variable-ratio and demanding viscosity combinations.
  • Servo-controlled dispensing for precise, repeatable small shots.
  • Programmable shot size and flow rate.
  • Integration with XYZ tables or robotic systems for automated insert potting.
  • Cartridge loading configuration where prefilled cartridges are part of the process.
Technicians working on a large aerospace panel assembly in a clean production bay

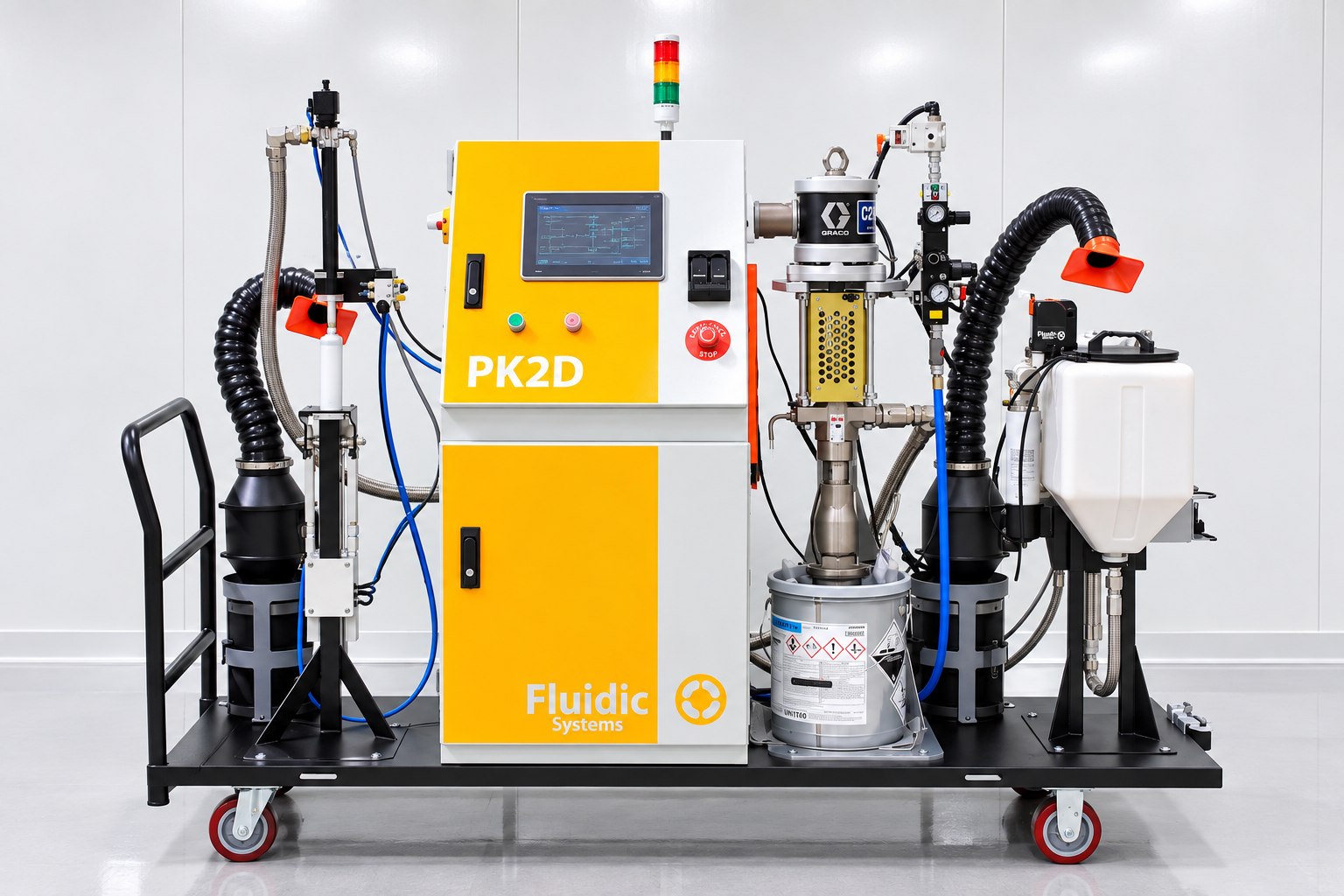

PK2D on a cart with drum supply pump and solvent tank, configured for potting
RECOMMENDED SYSTEMBuilt on PK1D · PK2D.
PK1D PK2D
